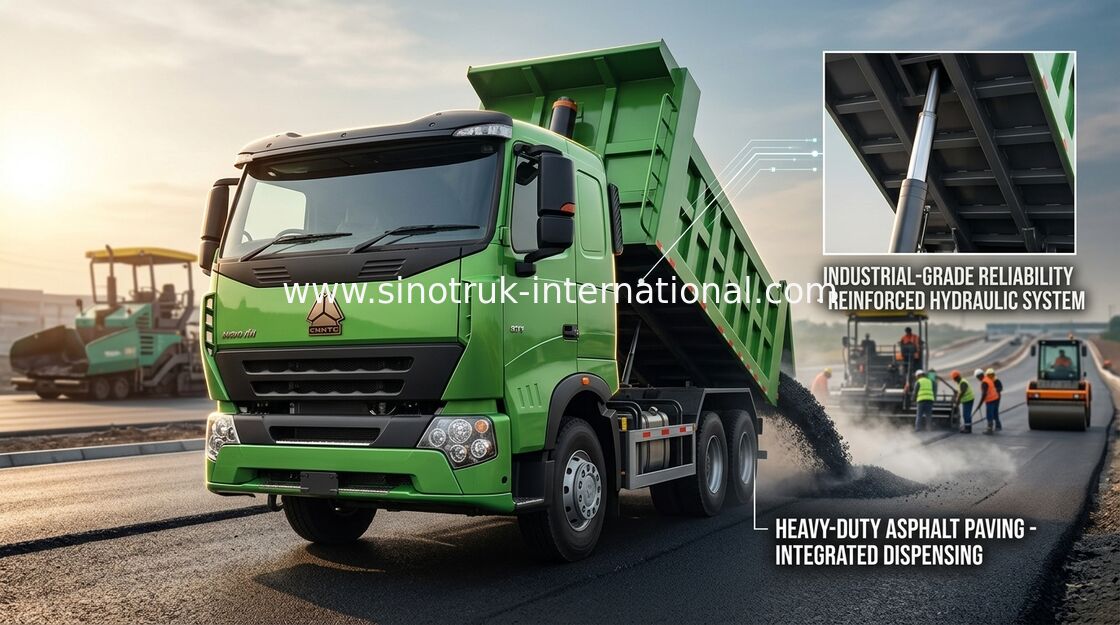

HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color

HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color

  • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
  • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
  • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
  • HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color
Detail produk:
Place of Origin: China
Nama merek: SINOTRUK HOWO A7
Sertifikasi: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3447N1
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 Unit
Harga: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Kontak
Detil Deskripsi produk
Product Name: Tipper Dump Truck Model: ZZ3257N3447N1
Drive type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.69, 336HP Cargo body: 5400*2300*1300mm
Loading capacity: 30-40tons Cabin: A7-P
Thickness of Cargo body: bottom:12mm, Side:10mm Hydraulic system: HYVA brand hydraulic cylinder
Cahaya Tinggi:

heavy dump truck

,

commercial dump truck

Tipper Dump Truck HOWO A7 30 - 40tons RHD 6X4 air suspension, Lemon Green color



Description:

Tipper Dump Truck HOWO A7 30 - 40tons RHD 6X4 air suspension, Lemon Green color

HOWO-A7 series products are oriented to the international market and domestic high-end heavy truck market. In the process of design and development, in order to ensure success in global competition, China's collaborative design in important parts with the international first-class supplier in accordance with international key assembly design standards, combined with China's actual characteristics of joint scientific research and development, special facilities, out of a a new international technology cooperation.



HOWO-A7 series of products using the German ZF absorption steering machine and WABCO double cylinder oil pump, air compressor, car brake valve and AMT transmission and SmartShift intelligent hand joint design since the development of shift system, Germany VOSS brake interface, MANN-HUMMEL fuel filter and plastic air filter system, SABO damper BEHR cooling system, VDO + instrument control system, VDO audio system, WESTFALIA exhaust bellows, HENDRICKSON rubber suspension and other world-class technology and products at the same time. With years of experience and Chinese heavy truck market for accurate understanding, developed with independent intellectual property Chinese many outstanding heavy truck assembly.









Specifications:




Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4
Model ZZ3257N3447N1
Drive Type 8×4
Engine

WD615.69 , 336HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8175×2496×3450(mm)
Cargo body 5400×2300×1300(mm),Bottom:12mm, Side:10mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)SMARTSHIFT-AMT intelligent shift hand self integrated transmission
2)quick and efficient spare parts supply bring you more convenient

3)low fuel consumption
4) strong enough engine

5)with all kinds of truck model, which can fulfil your requirement
6)the key parts adopt the world's top technology products
7)based on strong technical support and top level technology make the trucks with high

quality and more reliable

8)Optimized cargo body structure,light weight,high rigidity,large loading capacity

9)Using the high strength steel,it has long service life

10)Optimized the sealing structure has the better sealing effect.

11)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

running efficiency.



HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color 0HOWO A7 30 - 40 Tons Tipper Dump Truck RHD 6X4 Air Suspension Lemon Green Color 1
