| Product Name: | Water Tank Truck | Model: | ZZ1257N4641W |
|---|---|---|---|
| Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.87, 290HP | Tank body capacity: | 15-20CBM |
| Cahaya Tinggi: | construction water truck,international water truck |
||

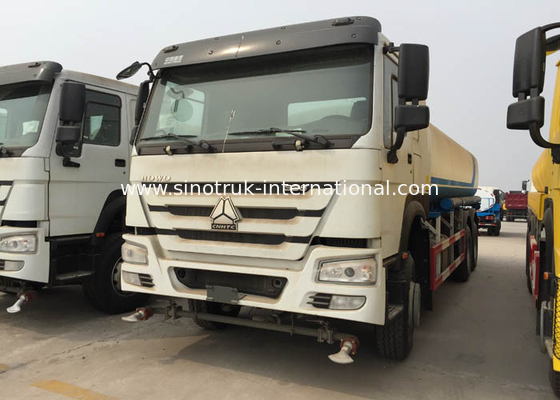

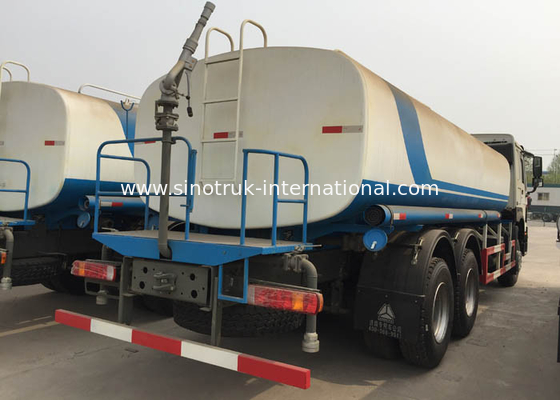

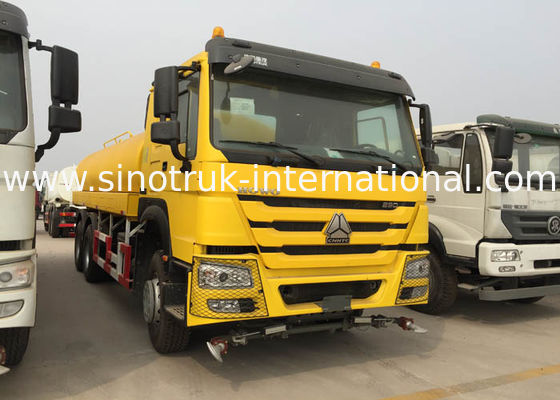

HOWO High Efficiency 15-25CBM Water Tank Truck With High And Low Level Spraying
Description:
Water Tank Truck have the character of high pressure, wide spraying
range, good flushing effect and so on. The flushing head universal regulation, meet
the arbitrary angle and the combination of the washing operation, the system can achieve
aerodynamic control and manual control of the two kinds of functions.
Tank external sandblasting, tank internal anti-corrosion treatment, outer surface of the senior
polyurethane topcoat, beautiful appearance. Optional mounted front and rear high jet,
with water diffusion function, a level 360 degree turn, also can be up and down 150
degree tilt. Optional medicine small flow pump, spraying configuration reel awakened
garden flowers and trees to kill the insects.
Specification:
| HOWO High Efficiency 15-25CBM Water Tank Truck With High And Low Level Spraying | |
|
Chassis Model |
ZZ1257N4641W |
|
Drive Type |
6×4 |
|
Engine |
WD615.69, 336HP |
|
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
|
Transmission |
HW15710(10 forwards & 2 reverses) |
|
Front Axle |
HF9(1X9 Tons) |
|
Driving Axle |
HC16(1X16 Tons) |
|
Clutch |
hydraulically operating with air assistance |
|
Rim/ Tire |
11.00R20, Radial tyre |
|
Wheel base |
4325+1350(mm) |
|
Capacity of tank body |
21-25CBM |
|
Spraying width of travel |
14.8m |
|
Spraying height |
≧30m |
|
Water sucking depth |
≧4m |
|
Overall dimension |
9920×2496×3550mm |
|
The curb weight |
13180(Kg) |
|
Gross weight |
25000 kg |
|
Max. speed |
95km/h |
|
Color |
White, red, green, golden and so on. |
Applications:
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and
dust covering in large-medium-scale cities.
Competitive Advantage:
1) High pressure, wide range of spraying good flushing effect
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
3) Pneumatic control and manual control system can realize two functions
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,
150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees
flowers and plants
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) competitive price, cost-effective
9) quick and efficient spare parts supply bring you more convenient
10) fast delivery time, we can arrange production according to your needs exactly and quickly
