Tempat asal: | CINA |
Nama merek: | SINOTRUK HOWO |
Sertifikasi: | ISO/3C/BV/IFA/SGS |
Nomor model: | ZZ1317N4667W |
Kuantitas min Order: | 1 unit |
---|---|
Harga: | USD46000-USD46500/UNIT)negotiation |
Kemasan rincian: | Telanjang atau waxing di roro atau kapal curah |
Waktu pengiriman: | 25 hari kerja setelah menerima pembayaran uang muka Anda |
Syarat-syarat pembayaran: | L/C, T/T, Western Union |
Menyediakan kemampuan: | 2.000 unit per bulan |
Nama Produk: | Truk Tangki Minyak | Model: | ZZ1317N4667W |
---|---|---|---|
Jenis drive: | LHD 8x4 | Standar emisi: | Euro 2 |
Mesin: | WD615.47, 371HP | Kapasitas Tangki Tubuh: | 25-30CBM |
Menyoroti: | 8x4 fuel tank truck,30 CBM oil tank truck,Sinotruk ghost face cab fuel truck |

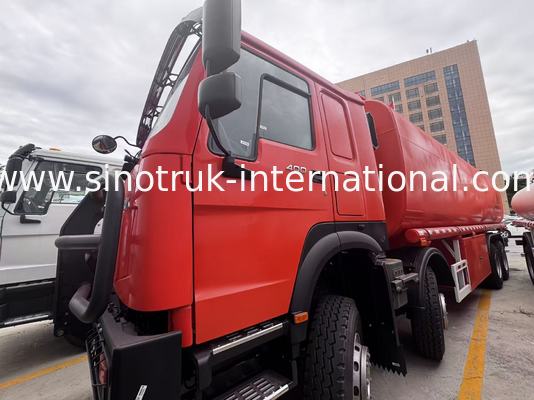

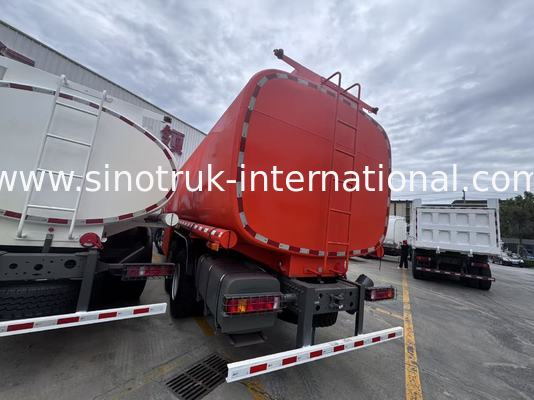

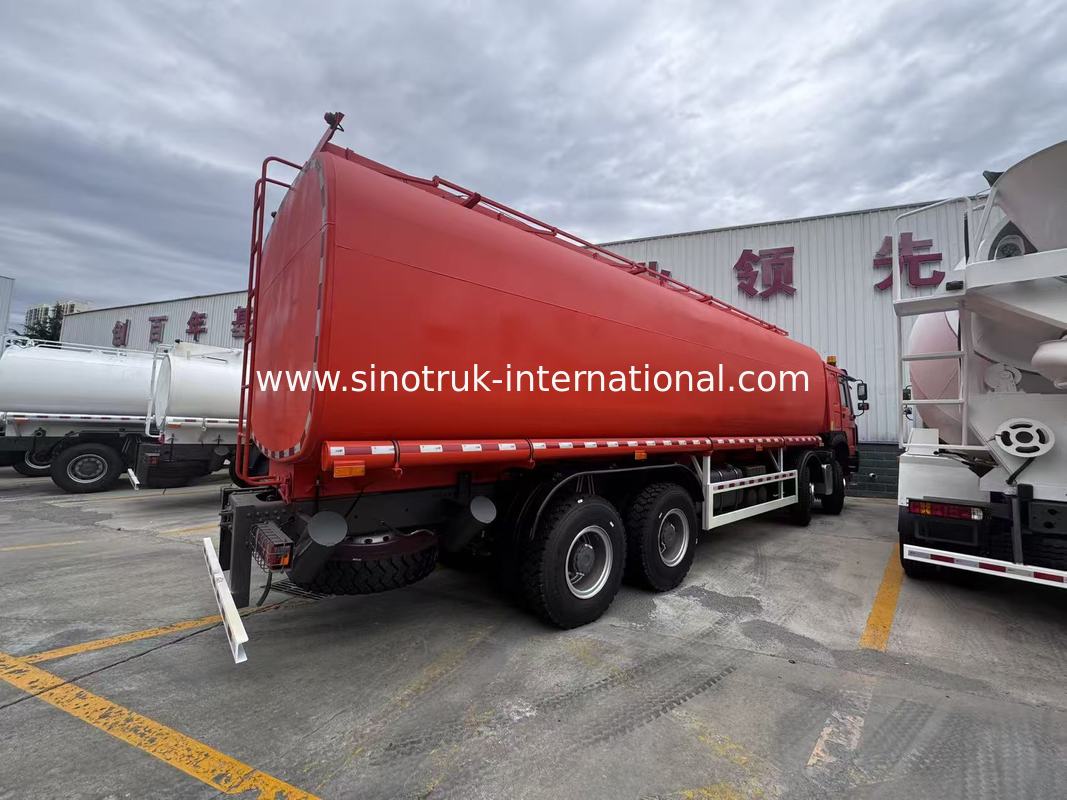

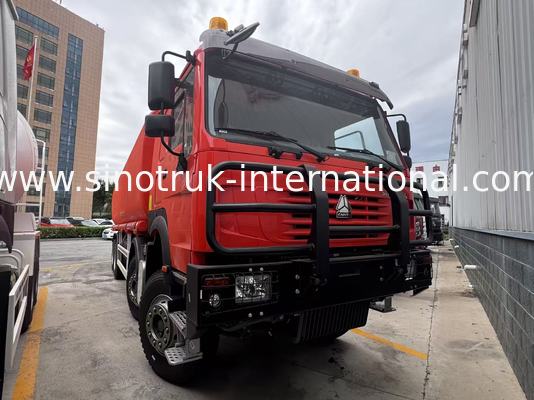

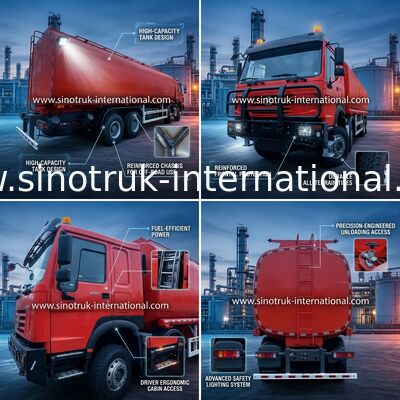

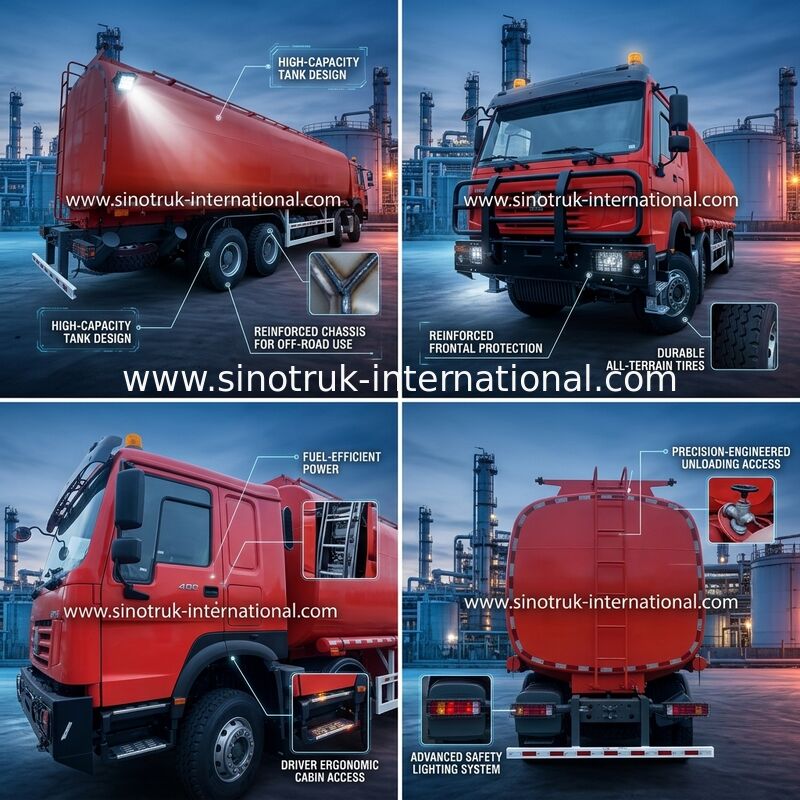

SINOTRUK 8X4 Fuel Tank Fuel Truck 30 CBM Ghost face cab With a bumper
Description:
HOWO Stainless Steel 8X4 Petroleum Oil Storage Tank Fuel Delivery Truck 30 CBM
Tanker trucks are also known as mobile fuel trucks, tanker trucks, tanker trucks, tanker trucks, tanker trucks, tanker trucks, edible oil carriers, mainly used for the transportation and storage of petroleum derivatives (gasoline, diesel, lubricating oil and coal tar oil).
Depending on the different gas or oil, and the different environment, the pump uses a variety of oils
Aluminum foil equipment, put function. The special part of the tank consists of the oil tank, the PTO, the drive shaft, the gear pump,
Piping system components. The piping system consists of oil pump, three-way four-ball valve,
Two way valve. Filter tube.
Specification:
SINOTRUK 8X4 Fuel Tank Fuel Truck 30 CBM Ghost face cab With a bumper | |
Chassis Model |
ZZ1317N4667W |
Drive Type |
8×4 |
Engine |
WD615.47, 371HP |
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission |
HW15710(10 forwards & 2 reverses) |
Front Axle |
HF9(1X9 Tons) |
Driving Axle |
HC16(1X16 Tons) |
Clutch |
hydraulically operating with air assistance |
Rim/ Tire |
11.00R20, Radial tyre |
Wheel base |
1800+4600+1350(mm) |
Capacity of tank body |
25-35CBM |
Thickness of tank body |
5mm,With 6cabin |
Basic setup |
Gear oil pump, flow meter, flash hider, fire extinguisher |
Overall dimension |
11894×2500×3550mm |
The curb weight |
12300(Kg) |
Gross weight |
31000 kg |
Max. speed |
95km/h |
Color |
White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil)
transportation and storage.
Competitive Advantage:
1) A variety of styles. A variety of truck models can meet your needs
2) High quality. Key components use the world's top technology products
3) Good technique. Based on strong technical support and top technology to make the truck with high quality and high quality
More reliable
4) Security and stability. The tank cars produced by our company adopt advanced butt welding technology and are processed and formed
Detect the leakage of high-pressure gas in the tank. The tank has high strength, stable center of gravity,
Safe and stable vehicle characteristics;
5) Shot blasting pretreatment process is adopted after welding of the tank body. Advanced baking technology is adopted for rust prevention and paint baking, which is durable and beautiful in appearance. Independent subposition,
6) Divided into different oil products, chemical, food, such as liquid food truck, chemical liquid food truck,
Insulated liquid transport vehicle, dangerous goods transport vehicle, asphalt transport vehicle
7) The outside of the tank is sandblasted, the inside is treated with anti-corrosion, and the outside surface is made of advanced polyurethane coating, which is beautiful in appearance
8) Front and rear high jet optional, water jet diffusion function, 360 degrees rotation,
150 degrees up and down. Optional small flow pump, spray wheel wake up garden trees to kill insects
Flowers and plants
9) Competitive price, cost-effective
10) Fast and efficient spare parts supply, to bring you more convenient
11) Fast delivery time, we can accurately and quickly arrange production according to your needs
12) Professional import and export transaction process makes customs clearance more efficient
