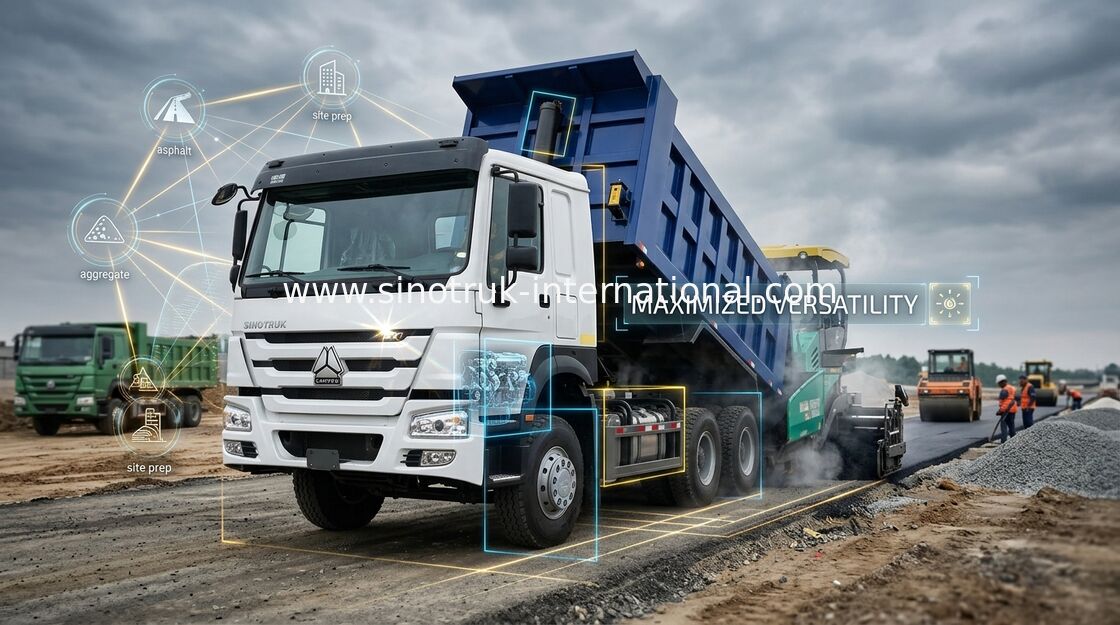

Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body

Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body

  • Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body
  • Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body
  • Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body
  • Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body
Ventral Lifting Commercial Dump Truck Sinotruk Howo 5400 * 2300 * 1500mm Cargo Body
Detail produk:
Place of Origin: China
Nama merek: SINOTRUK HOWO
Sertifikasi: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3447A1
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: 1 Unit
Harga: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Kontak
Detil Deskripsi produk
Product Name: Tipper Dump Truck Model: ZZ3257N3447A1
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Cargo body: 5400*2300*1500mm
Loading capacity: 30-40tons Lfiting type: Middle hydraulic cylinder
Thickness of cargo body: bottom:8mm, side: 6mm Transmission: HW15710
Cahaya Tinggi:

sinotruk howo dump truck

,

commercial dump truck

SINOTRUK HOWO Tipper Truck Euro2 290HP LHD 10-25 CBM 30-40tons Ventral lifting



Description:



SINOTRUK HOWO Tipper Truck Euro2 290HP LHD 10-25 CBM 30-40tons Ventral lifting

From design concept to configuration, from the atmosphere to beautiful and practical and reliable, from the economy to the safety, comfortable, convenient, China's newly launched HOWO-7 heavy truck reflects the product development strategy China's one step ahead. As the crystal China heavy truck "technology leading strategy", HOWO-7 has not only become the pinnacle of domestic heavy truck also, will lead the China heavy truck industry to quickly advanced level in the world



As the positioning in the high-end heavy truck, safety performance can not be ignored. HOWO with ABS "front disc and drum" configuration, the vehicle stability to achieve the standard USB brake is one of the world's most high-end heavy truck, compared with drum brake which has a high speed, heavy load and high temperature characteristics when the braking efficiency is good. When the vehicle speed. To 80km/h, in the end I got test track unhurried on the brake pedal, the body is not under the strong inertial force obviously did not have a front brake head and braking deviation phenomenon, but in a slow, gentle attitude slow forward.





Specification:



SINOTRUK HOWO Tipper Truck Euro2 290HP LHD 10-25 CBM 30-40tons Ventral lifting
Model ZZ3257N3447A1
Drive Type 6×4
Engine

WD615.87 , 290HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW15710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically

operating with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3400+1350(mm)
Overall dimension 8175×2496×3450(mm)
Cargo body

5400×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1) competive price, cost-effective

2) reliable quality

3) good after slaes service, which can send engineers for traning and maintainance

4) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

5) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

6) low fuel consumption

7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements

9) using the high strength steel, make it has a long service life

10) fast delivery time, we can arange production according to your needs exactly and quickly

11) professional import and export dealing precedure, make customs clearance more high efficiency

12) excellant apperance of cabin, safety, reliable

13) quick and efficient spare parts supply bring you more convenient

14) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

15) The hydraulic sytem using HYVA brand or Domestic famouse brand
