| Product Name: | Water Tank Truck | Model: | ZZ1257M4341W |
|---|---|---|---|
| Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.87, 290HP | Tank body capacity: | 15-20CBM |
| Cahaya Tinggi: | international water truck,construction water truck |
||

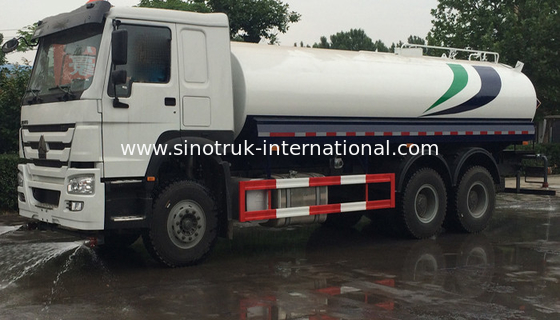

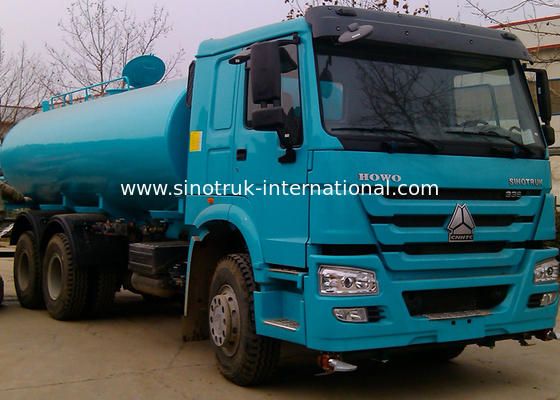

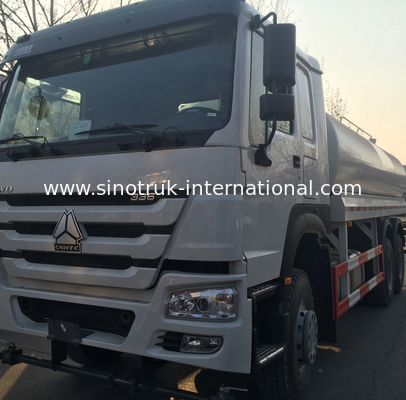

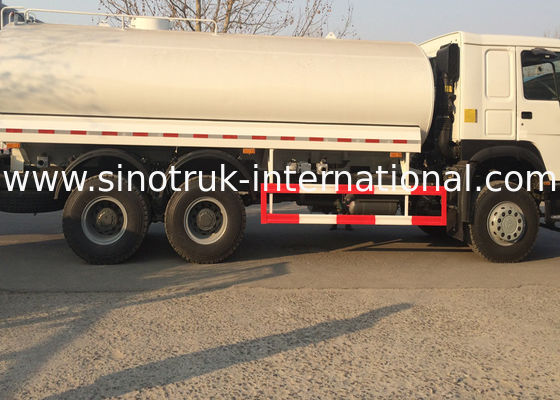

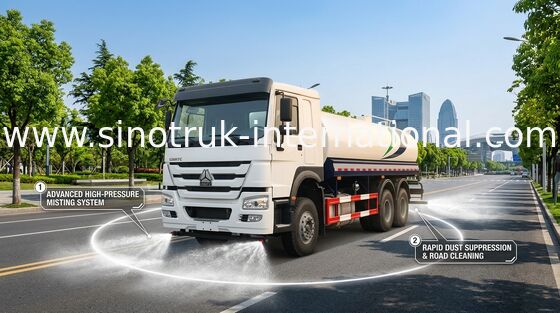

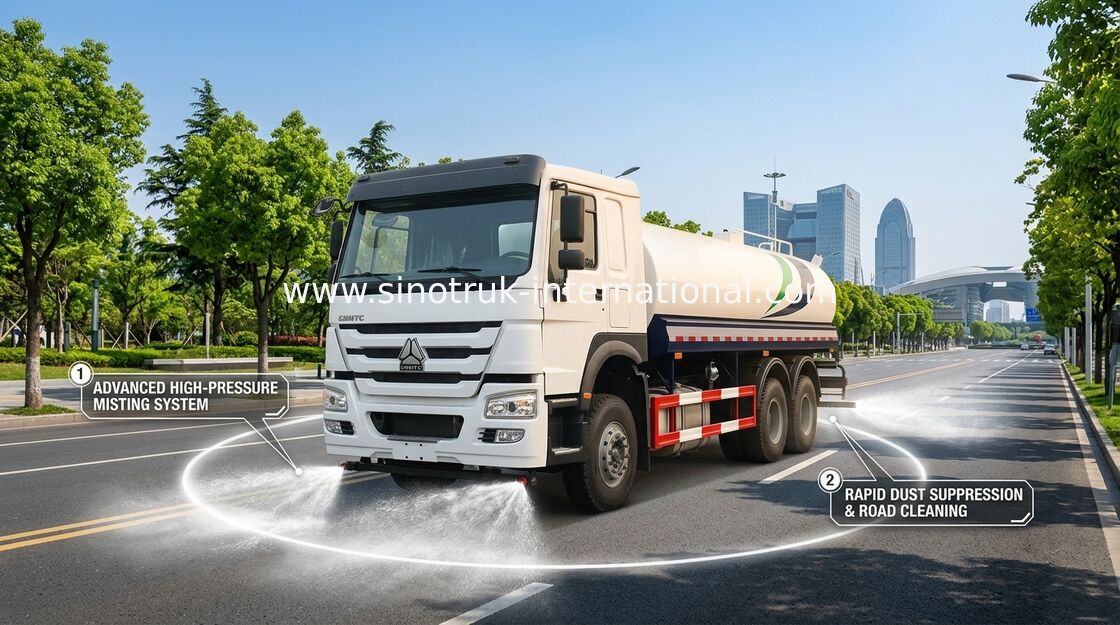

Water Tank Truck SINOTRUK HOWO 19CBM for Landscape Engineering or Mining area
Description:
Water Tank Truck SINOTRUK HOWO 19CBM for Landscape Engineering or Mining area
Working principle is truck engine driven gearbox, gearbox mounted power take-off drive
sprinkler pumps, sprinkler pump produces the main driving force, inside the tank of
liquid through the pipe to spray out. Self suction height: less than or equal to 7m,
sprinkler width: is equal to or more than 20m, maximum range: greater than or equal to
28m; adjusting the pillars, the range is more than or equal to 28m; also can be adjusted
into a mist, a range of equal to or more than 5m. Before the spray sprinkle, is arranged
in front of the duck shaped nozzle or round blunt mouth, mounted behind the open
sprinkler nozzle or shower nozzle of cylinder, at the back of the work platform, equipped
with water cannons.
Specification:
| Water Tank Truck SINOTRUK HOWO 19CBM for Landscape Engineering or Mining area | |
|
Chassis Model |
ZZ1257M4341W |
|
Drive Type |
6×4 |
|
Engine |
WD615.87, 290HP |
|
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
|
Transmission |
HW15710(10 forwards & 2 reverses) |
|
Front Axle |
HF9(1X9 Tons) |
|
Driving Axle |
HC16(1X16 Tons) |
|
Clutch |
hydraulically operating with air assistance |
|
Rim/ Tire |
11.00R20, Radial tyre |
|
Wheel base |
4325+1350(mm) |
|
Capacity of tank body |
15-20CBM |
|
Spraying width of travel |
14.8m |
|
Spraying height |
≧30m |
|
Water sucking depth |
≧4m |
|
Overall dimension |
9520×2496×3150mm |
|
The curb weight |
12180(Kg) |
|
Gross weight |
25000 kg |
|
Max. speed |
95km/h |
|
Color |
White, red, green, golden and so on. |
Applications:
The Water tank truck is mainly used for construction of mines and other enterprises, road flushing and dust
covering in large-medium-scale cities.
Competitive Advantage:
1) High pressure, wide range of spraying good flushing effect
2) Blunt head universal adjustment, meet the arbitrary Angle and the combination of the flush operation
3) Pneumatic control and manual control system can realize two functions
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation, 150 degree tilt up
and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and more
reliable
9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient
11) fast delivery time, we can arrange production according to your needs exactly and quickly
12) professional import and export dealing procedure, make customs clearance more high efficiency
